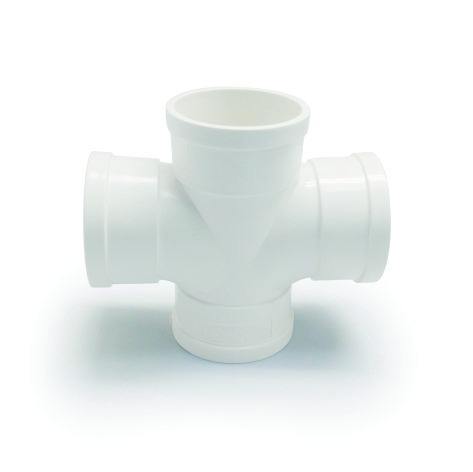

PVC drainage pipe fittings produce based on polyvinyl chloride (PVC) resin as the main raw material, by adding suitable amount of the stabilizer, lubricant, filler, toner and injection molding after fully mixed, and then through multi-channel working procedures such as heating, extrusion, styling, cooling, stripping, trimming, inspection, packing and other processes to complete the production of pipe fittings.
Return| specifications | D | d | I | D1 | d1 | l1 | L | H | A/box |
|---|---|---|---|---|---|---|---|---|---|
| Φ50x50x50 | 57.1 | 50.5 | 27 | 57.1 | 50.5 | 27 | 124 | 110 | 96 |
| Φ75x50x50 | 84.2 | 75.6 | 42 | 57.1 | 50.5 | 27 | 158 | 140 | 60 |
Φ75x75x75 | 84.2 | 75.6 | 42 | 84.2 | 75.6 | 42 | 192 | 170 | 36 |
| Φ110x50x50 | 120.7 | 110.7 | 50 | 57.1 | 50.5 | 27 | 180 | 153 | 60 |
| Φ110x75x75 | 120.7 | 110.7 | 50 | 84.2 | 75.6 | 42 | 234 | 190 | 32 |
| Φ110x110x110 | 120.7 | 110.7 | 50 | 120.7 | 110.7 | 50 | 254 | 223 | 12 |
