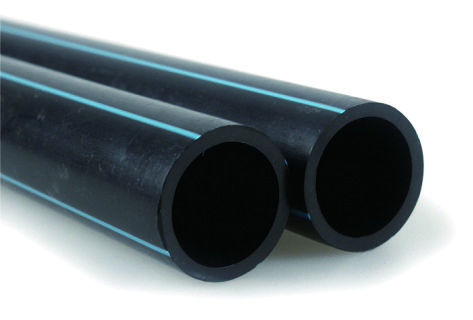

PE (polyethylene) is one of the most basic plastic. Due to its high strength, high temperature resistant, anti-corrosion, non-toxic, wear resistance and other characteristics, PE material is widely used in water supply and drainage manufacturing. According to the wall thickness, it can be divided into SDR11 and SDR17.6 series. Compared with steel pipe, PE pipe construction process is simpler and has certain flexibility. More importantly, it will save a lot of processes by leaving out the antiseptic treatment.
Return| specifications | D | S | M/package |
|---|---|---|---|
| Φ20 | 20 | 2.0 | 6 |
| Φ25 | 25 | 2.3 | 6 |
| Φ32 | 32 | 3.0 | 6 |
| Φ40 | 40 | 3.7 | 6 |
| Φ50 | 50 | 4.6 | 6 |
| Φ63 | 63 | 5.8 | 6 |
| Φ75 | 75 | 6.8 | 6 |
| Φ90 | 90 | 8.2 | 6 |
| Φ110 | 110 | 10.0 | 6 |
| Φ125 | 125 | 11.4 | 6 |
| Φ140 | 140 | 12.7 | 6 |
| Φ160 | 160 | 14.6 | 6 |
| Φ180 | 18 | 18.2 | 6 |
| Φ200 | 200 | 20.5 | 6 |
| Φ225 | 225 | 22.7 | 6 |
| Φ250 | 250 | 25.4 | 6 |
| Φ280 | 280 | 28.6 | 6 |
| Φ315 | 310 | 32.2 | 6 |
| Φ355 | 355 | 36.3 | 6 |
| Φ400 | 400 | 40.9 | 6 |
| Φ450 | 450 | 45.4 | 6 |
| Φ500 | 200 | 45.4 | 6 |
| Φ560 | 560 | 50.8 | 6 |
| Φ630 | 630 | 57.2 | 6 |
